Architecture Overview

Cresco is a hierarchical mesh of agents. This page is the mental model; the following pages drill into each subsystem.

Nodes and the hierarchy

Every Cresco node is a JVM running an OSGi (Apache Felix) host that loads the controller and a set of plugins. A node runs in one of five controller modes:

Mode Description
STANDALONE A single node with no parent.
AGENT A leaf; connects as a client to a regional controller's broker.
REGION A regional controller; runs an embedded broker and federates up to a global.
REGION_GLOBAL Both a region and the global (a self-contained fabric).
GLOBAL The top of the hierarchy; federates regions together.
                         ┌────────────────────┐
                         │  GLOBAL controller │        (federates regions; wsapi :8282 for clients)
                         └─────────┬──────────┘
                 broker bridge ────┼──── broker bridge
              ┌───────────────────┐│┌───────────────────┐
              │ REGION controller │││ REGION controller │   (each runs its own ActiveMQ broker)
              └───────┬───────────┘│└──────────┬────────┘
            JMS client│   JMS client│           │JMS client
          ┌───────┐ ┌─┴─────┐   ┌───┴───┐    ┌──┴────┐
          │ AGENT │ │ AGENT │   │ AGENT │    │ AGENT │        (leaf nodes running plugins)
          └───────┘ └───────┘   └───────┘    └───────┘

Brokers vs. clients: region and global controllers run an embedded ActiveMQ broker; agents are JMS clients that attach to their region's broker. Regions federate to the global (and globals to each other) via broker-to-broker network bridges.

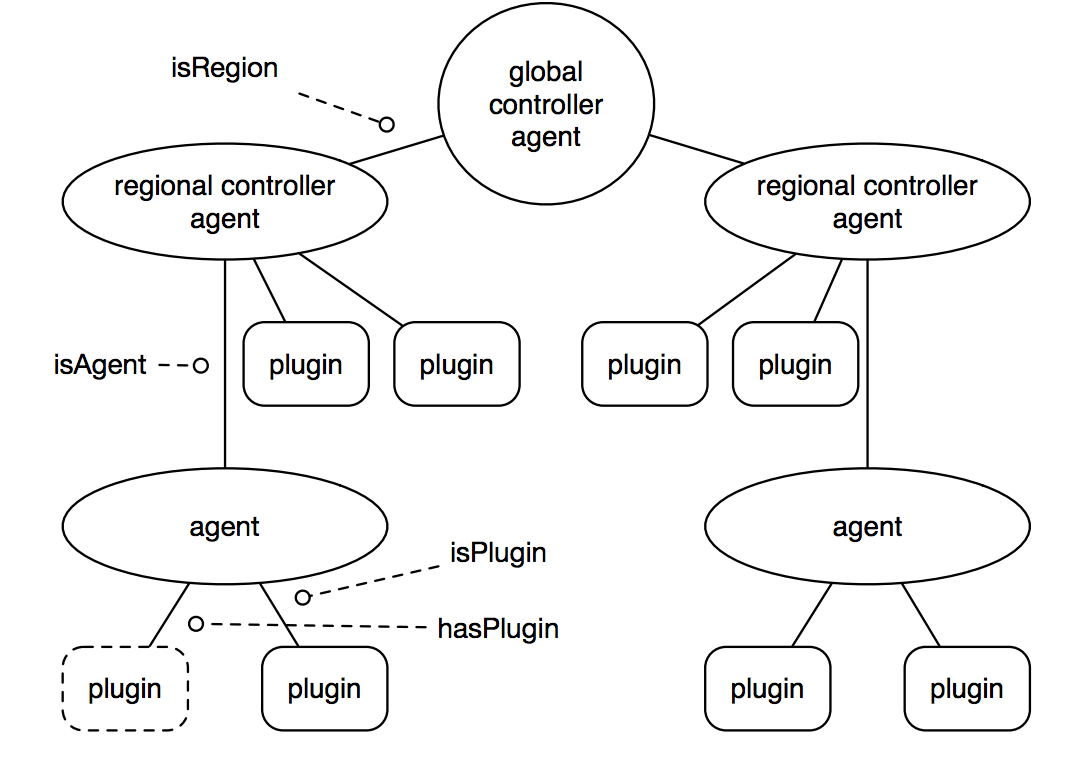

Cresco topology

The two planes

Plane Carrier Used for
Control plane MsgEvent over ActiveMQ queues addressed commands, config, RPC, watchdog/liveness, telemetry
Data plane ActiveMQ topics (pub/sub) high-throughput streaming of application data

Messages are addressed by region_agent[_plugin] and routed deterministically by the MsgRouter; the data plane is subscription-driven pub/sub.

Subsystems

The controller is the fabric brain. Its subsystems, each documented here:

Subsystem Page Role
Messaging & routing Messaging & Routing MsgEvent, MsgRouter, ActiveMQ brokers, federation bridges, QoS
Data plane Data Plane streaming topics, sharding, CEP
Discovery Discovery UDP/TCP discovery, join secrets, certification
Security & identity Security & Identity X.509 identity, mutual TLS, regional-CA trust, signing
Multi-tenancy Multi-Tenancy destination namespacing, role-based authorization
Health & state Health & State Felix health checks, mesh health rollup, state machine
Metrics Metrics & Measurements Micrometer model, mesh-wide getmetricinventory

State and inventory (nodes, plugins, edges, health) are persisted per-controller in an embedded Derby database.

Lifecycle at a glance

  1. A node boots the Felix host and the controller (agent module).
  2. It discovers a parent (region/global) by broadcasting/connecting with the tier join secret, and exchanges/establishes trust.
  3. It opens its messaging channels (inbox queue + producers) and, if a controller, starts its broker and federation bridges.
  4. Watchdog/liveness pings keep parent links healthy; metrics stream to the controller; plugins register their actions.
  5. Clients attach to the global's wsapi and drive the fabric.
